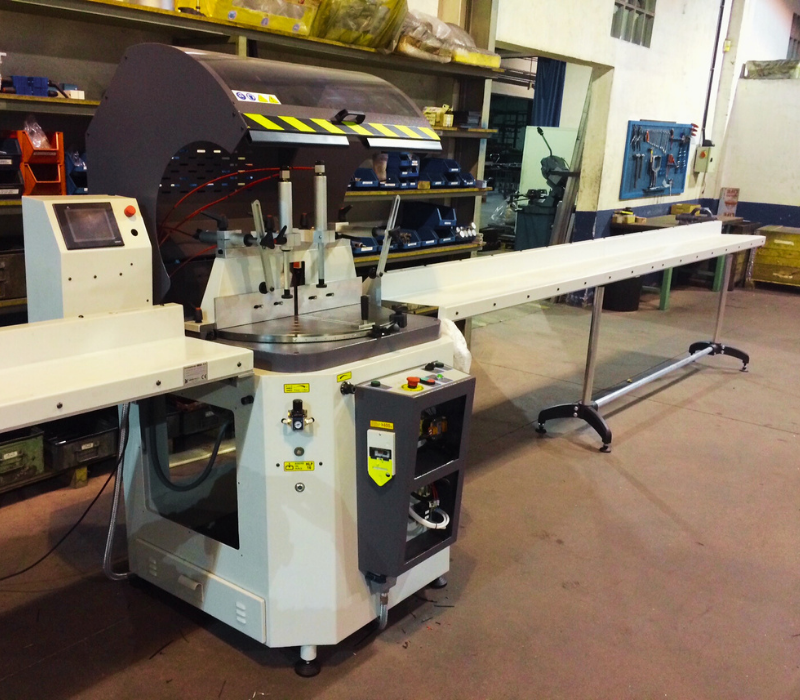

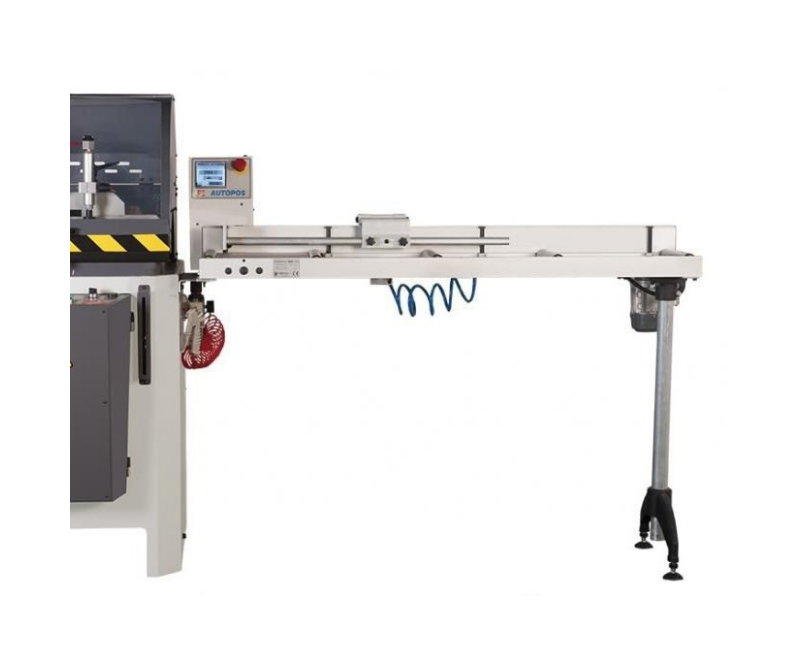

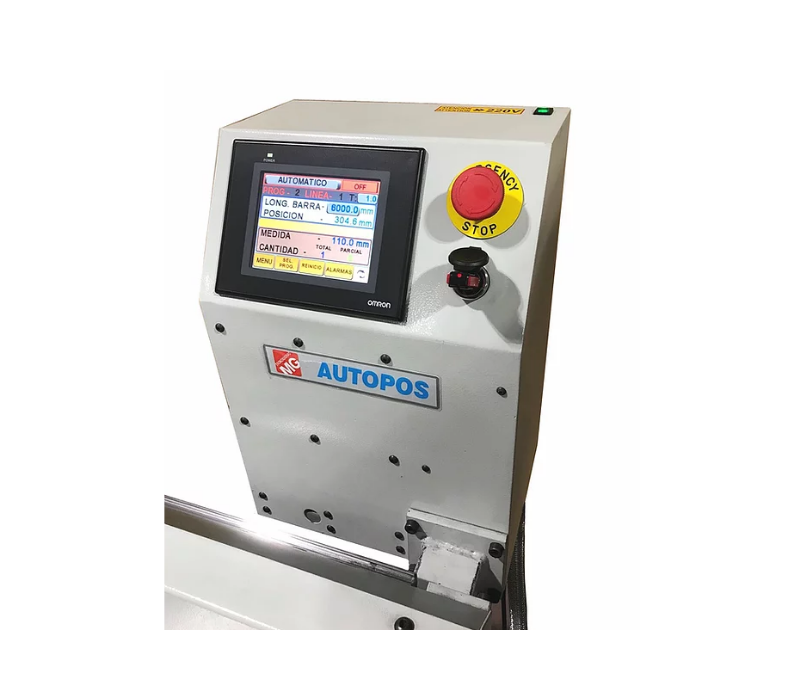

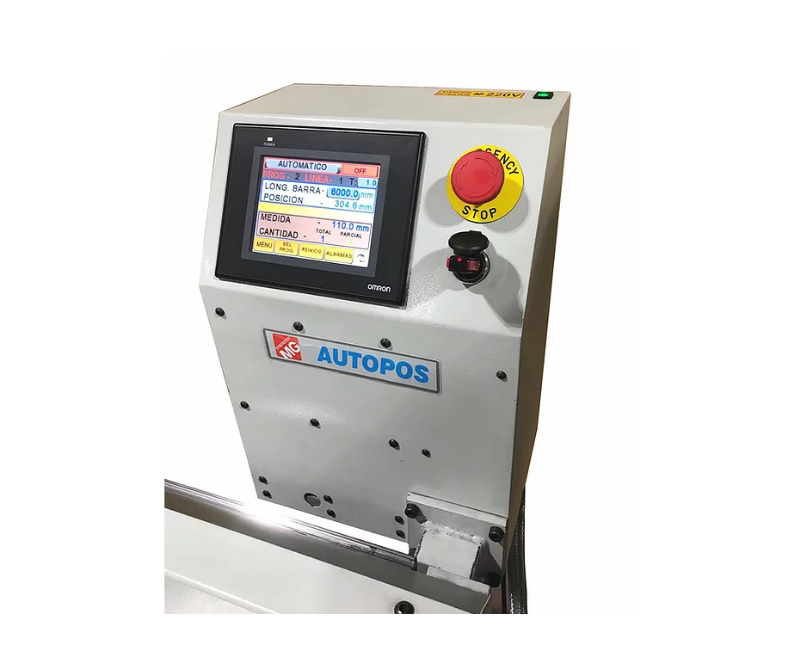

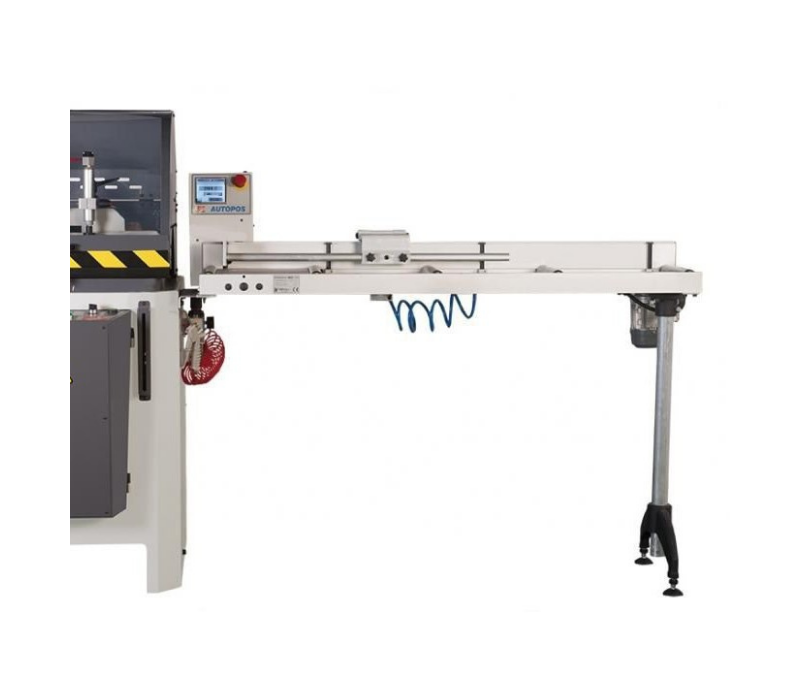

The TM-AUTOPOS length stop is suitable for plastic and aluminum profiles. The stop automatically moves to the desired position, with a repeatability of 0.1 mm. Dimension indication is provided via the touch screen on the control console, where a cutting list can also be created. Optionally, a USB connection can be provided for importing a cutting list.

The stop can be manually folded away for easy removal of profiles after cutting. It can be mounted on either the left or right side of a machine and is available in different lengths: 3,000, 4,000, and 6,000 mm.

The roller conveyor is open and equipped with plastic rollers with a diameter of 40 mm and a length of 300 mm. The maximum load capacity is 70 kg per meter. On request, the roller conveyor can be closed and/or supplied with a width of 400 or 500 mm.

As standard, the roller conveyor is fitted with aluminum support legs and a fixed adjustable working height between 800 and 1,050 mm. Alternatively, steel support legs can also be installed.
